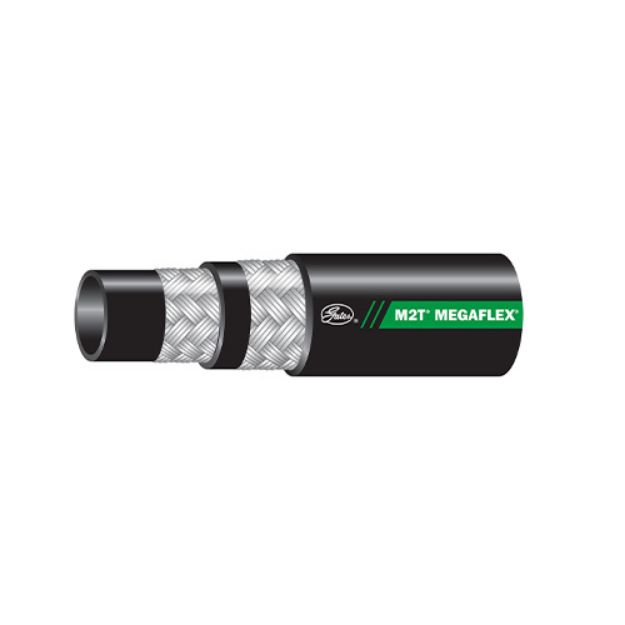

GATES 4M2T MEGAFLEX HOSE

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas.
Manufacturer: Gates
SKU: 4M2T
8739 in stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20), GlobalSpiral™ Plus Couplings (-24 and -32), MegaCrimp® Couplings (-4 through -20), and Stainless Steel B Couplings.

  • M2T® hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
  • Superior flex impulse performance: Tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii.
  • Meets Flame Resistance Acceptance Designation MSHA 2G.



Products specifications
Attribute name Attribute value
Type M2T
Hose Configuration 2-Wire Braid
Size A 04 (1/4")
Working Pressure Psi 6000 Psi

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20), GlobalSpiral™ Plus Couplings (-24 and -32), MegaCrimp® Couplings (-4 through -20), and Stainless Steel B Couplings.

  • M2T® hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
  • Superior flex impulse performance: Tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii.
  • Meets Flame Resistance Acceptance Designation MSHA 2G.



Products specifications
Attribute name Attribute value
Type M2T
Hose Configuration 2-Wire Braid
Size A 04 (1/4")
Working Pressure Psi 6000 Psi
