5/8 PLUTONE A HOSE (50MT)

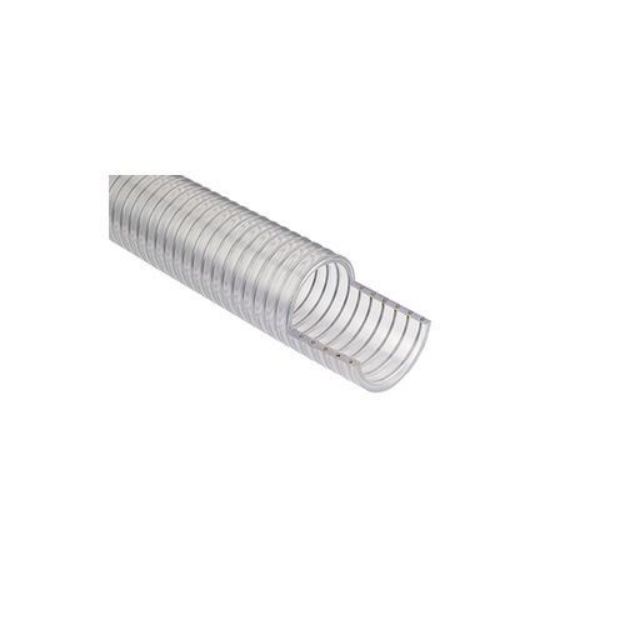

Springflexâ„¢ is an extremely tough and flexible wire reinforced, non toxic transparent PVC hose, allowing easy identification of blockages.
Manufacturer: Gates
SKU: SFH10
Out of Stock - on backorder and will be dispatched once in stock.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Springflex™ is an extremely tough and flexible wire reinforced, non toxic transparent PVC hose, allowing easy identification of blockages. UV compounded to maintain clarity. Excellent resistance to pressure, vacuum, abrasion and accidental crushing with accurate pitch and placement of high tensile carbon steel helix preventing bulging and bursting. Highly flexible over a wide temperature range.
Smooth bore reduces flow loss.



Applications

Water, slurries, granules, foodstuffs
and dilute chemicals. Springflex™ is ideally suited to applications in the agricultural, food processing, plastics handling, marine & construction industries.

Construction

High tensile carbon steel wire
encapsulated in transparent non – toxic flexible PVC.

Colour

Standard – Clear
Other colours available subject to minimum order quantity

Temperature Range

-10°C to +55°C

Size Range

3/8” to 6”
35mm to 80mm

Standard Length

30m Coils up to 5″
50m Coils also available up to 80mm
20m Coils for 6″
Other lengths available subject to minimum order quantity

Special Features

  • Very high working pressures
  • Very good for vacuum
  • Two layers of food quality PVC
  • Exceptional kink and crush resistance from high tensile steel spiral
  • Tough, very flexible and extremely durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance



Products specifications
Attribute name Attribute value
Industrial Hose Type PVC Clear Hose
Size B 10 (5/8")

Springflex™ is an extremely tough and flexible wire reinforced, non toxic transparent PVC hose, allowing easy identification of blockages. UV compounded to maintain clarity. Excellent resistance to pressure, vacuum, abrasion and accidental crushing with accurate pitch and placement of high tensile carbon steel helix preventing bulging and bursting. Highly flexible over a wide temperature range.
Smooth bore reduces flow loss.



Applications

Water, slurries, granules, foodstuffs
and dilute chemicals. Springflex™ is ideally suited to applications in the agricultural, food processing, plastics handling, marine & construction industries.

Construction

High tensile carbon steel wire
encapsulated in transparent non – toxic flexible PVC.

Colour

Standard – Clear
Other colours available subject to minimum order quantity

Temperature Range

-10°C to +55°C

Size Range

3/8” to 6”
35mm to 80mm

Standard Length

30m Coils up to 5″
50m Coils also available up to 80mm
20m Coils for 6″
Other lengths available subject to minimum order quantity

Special Features

  • Very high working pressures
  • Very good for vacuum
  • Two layers of food quality PVC
  • Exceptional kink and crush resistance from high tensile steel spiral
  • Tough, very flexible and extremely durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance



Products specifications
Attribute name Attribute value
Industrial Hose Type PVC Clear Hose
Size B 10 (5/8")
