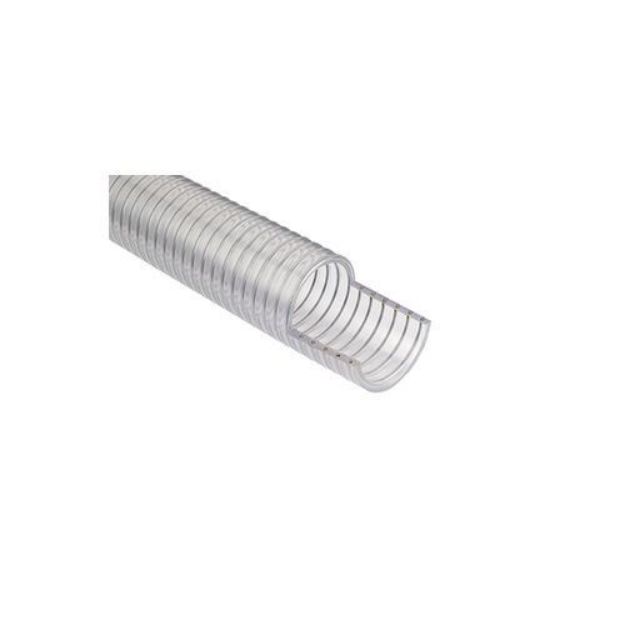

Springflex™ is an extremely tough and flexible wire reinforced, non toxic transparent PVC hose, allowing easy identification of blockages. UV compounded to maintain clarity. Excellent resistance to pressure, vacuum, abrasion and accidental crushing with accurate pitch and placement of high tensile carbon steel helix preventing bulging and bursting. Highly flexible over a wide temperature range.
Smooth bore reduces flow loss.
Applications
Water, slurries, granules, foodstuffs
and dilute chemicals. Springflex™ is ideally suited to applications in the agricultural, food processing, plastics handling, marine & construction industries.
Construction
High tensile carbon steel wire
encapsulated in transparent non – toxic flexible PVC.
Colour
Standard – Clear
Other colours available subject to minimum order quantity
Temperature Range
-10°C to +55°C
Size Range
3/8” to 6”
35mm to 80mm
Standard Length
30m Coils up to 5″
50m Coils also available up to 80mm
20m Coils for 6″
Other lengths available subject to minimum order quantity
Special Features
- Very high working pressures
- Very good for vacuum
- Two layers of food quality PVC
- Exceptional kink and crush resistance from high tensile steel spiral
- Tough, very flexible and extremely durable
- Outstanding resistance to the effects of weather
- Minimum frictional loss is achieved by the smooth bore
- Excellent chemical resistance
