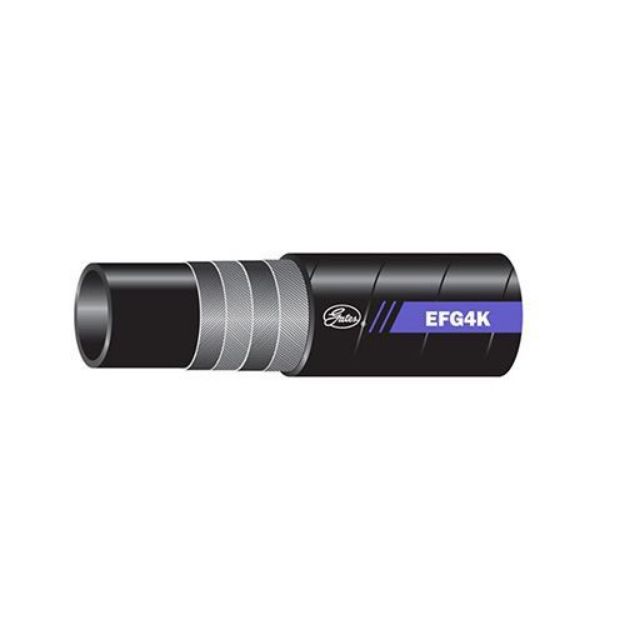

20EFG4K - Hose Envirofluid - Four Wire Hydraulic Hose

Recommended for extremely high pressure and high impulse hydraulic applications. EFG4K exceeds requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12

Manufacturer: Gates

SKU: 20EFG4K

Availability:

15 in stock

Overview
EFG4K Specification Sheet
Specifications

Recommended for extremely high pressure and high impulse hydraulic applications. EFG4K exceeds requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20) Special One-Piece 20MGS Coupling (MC4-20 Crimper Only) (-20), Stainless Steel S Couplings.

EFG4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.

Specification Sheet

Products specifications

Attribute name	Attribute value
Type	EFG4K
Hose Configuration	4-Wire Spiral
Size A	20 (1 1/4")
Working Pressure Psi	4000 Psi

EFG4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.

Products specifications

Attribute name	Attribute value
Type	EFG4K
Hose Configuration	4-Wire Spiral
Size A	20 (1 1/4")
Working Pressure Psi	4000 Psi
